Into the World of Through-Hole Technology: Exploring its Past, Present, and Future

Thru-Hole Technology (THT) has been a cornerstone in electronics manufacturing for decades, providing robust connections and reliable performance in electronic circuits. This blog delves into the rich history, current applications, and future prospects of Through-Hole Technology, highlighting its enduring importance in the ever-evolving landscape of electronics.

What’s a through hole?

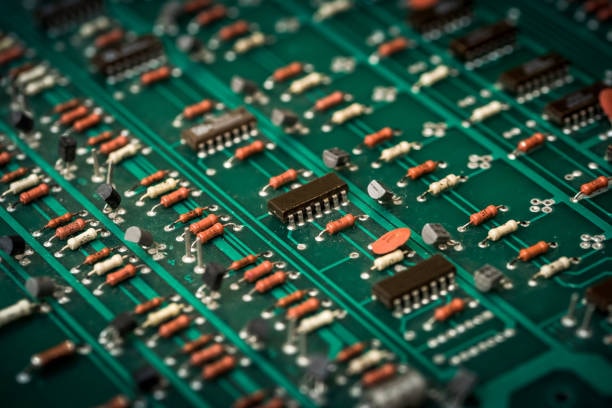

A through hole is a type of mounting technology used in electronics where the leads of electronic components are inserted into holes drilled through a printed circuit board (PCB) and soldered onto pads on the opposite side. This creates a strong mechanical bond and reliable electrical connection between the component and the PCB.

Through-hole technology was the dominant method of assembling electronic circuits before the advent of surface-mount technology (SMT). It remains essential for applications requiring high reliability and mechanical strength, such as in aerospace, automotive, and industrial equipment, where components must endure significant physical stress and environmental conditions.

The Legacy of Through-Hole Technology

Through-Hole Technology traces its roots back to the early days of electronic assembly, where components were manually soldered onto printed circuit boards (PCBs) through holes drilled into the board. This method revolutionized electronics manufacturing by providing secure mechanical and electrical connections, ensuring durability and stability in electronic devices.

There are two types of components of thru hole

Through-hole components can be broadly classified into two main types: axial lead components and radial lead components. Each type has distinct characteristics and is used for specific applications in electronic circuits.

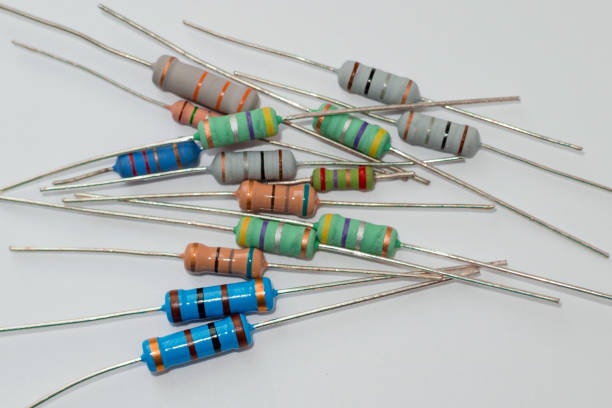

Axial Lead Components:

  • Description: Axial lead components have leads (metal wires) extending from each end of the component’s body along the same axis. They are designed to be mounted horizontally on the PCB.
  • Examples: Resistors, diodes, capacitors, and some types of inductors.
  • Applications: Axial lead components are commonly used in circuits where space is a concern, and they can be placed flat against the board. They are suitable for applications requiring minimal vertical profile.

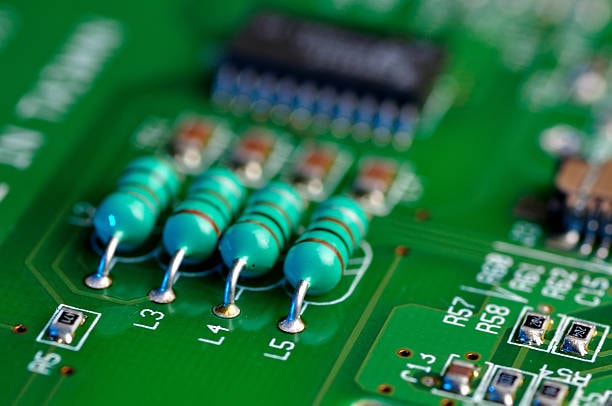

Radial Lead Components

  • Description: Radial lead components have leads extending from the bottom of the component’s body, perpendicular to the axis. They are designed to be mounted vertically on the PCB.
  • Examples: Electrolytic capacitors, transistors, some types of LEDs, and certain relays.
  • Applications: Radial lead components are often used when a higher component density is needed, or when the component’s size and shape are better suited for vertical mounting. They are ideal for applications requiring a smaller footprint on the PCB.

Both axial and radial lead components offer the mechanical strength and durability characteristic of through-hole technology, making them suitable for various applications, including high-reliability and high-stress environments.

Future Prospects and Integration of thru hole

While surface-mount technology (SMT) has gained prominence for its compactness and high-speed assembly, Through-Hole Technology continues to find its niche in specialized applications. The future of Through-Hole Technology lies in its integration with emerging technologies such as Internet of Things (IoT), where ruggedness and reliability remain paramount.

Advancements and Innovations of thru hole

Over time, Through-Hole Technology witnessed significant advancements, including the introduction of automated insertion machines that streamlined assembly processes. Components such as resistors, capacitors, diodes, and connectors were seamlessly integrated into PCBs, expanding the scope of applications for Through-Hole Technology across various industries.

Present Applications and Benefits of thru hole

In the present day, Through-Hole Technology continues to play a vital role in electronic manufacturing, particularly in applications requiring robustness and reliability. Industries such as automotive, aerospace, industrial automation, and telecommunications rely on Through-Hole components for their ability to withstand harsh environments and ensure long-term performance.

The benefits of Through-Hole Technology include:

  • Mechanical Strength: Through-Hole components offer strong mechanical connections, reducing the risk of component detachment or failure.
  • Thermal Stability: The solder joints in Through-Hole components provide excellent thermal conductivity, dissipating heat effectively and enhancing overall device reliability.
  • Repairability: Through-Hole components are relatively easier to replace or repair compared to surface-mount components, making them suitable for maintenance and upgrades.

Advantages and Disadvantages of thru-hole

Advantages and Disadvantages of Through-Hole Technology

Advantages:

  1. Mechanical Strength:
    • Through-hole components are soldered on both sides of the PCB, providing robust mechanical connections that are less likely to detach under mechanical stress or vibration. This makes them ideal for applications where durability and reliability are critical, such as in automotive, aerospace, and industrial equipment.
  2. Ease of Repair and Replacement:
    • Through-hole components are easier to handle and solder manually, making them simpler to repair or replace compared to surface-mount components. This ease of maintenance is beneficial for prototyping, testing, and applications where longevity and ongoing support are essential.
  3. Thermal Performance:
    • The leads of through-hole components can help dissipate heat away from the component, improving thermal performance. This is particularly advantageous for high-power applications where managing heat is crucial to maintaining performance and reliability.
  4. Strong Electrical Connections:
    • The through-hole mounting process ensures reliable and strong electrical connections, reducing the risk of connectivity issues. This reliability is important in critical applications where signal integrity and stable performance are paramount.

Disadvantages:

  1. Larger PCB Size:
    • Through-hole components typically require more space on the PCB compared to surface-mount components. The need to drill holes through the board and the physical size of the components can limit the density of the circuit, resulting in larger and potentially heavier PCBs.
  2. More Complex and Costly Manufacturing:
    • The process of drilling holes and manually placing through-hole components can be more complex and costly compared to automated surface-mount technology (SMT) processes. This can lead to higher production costs and longer assembly times, especially for high-volume manufacturing.
  3. Limited Suitability for High-Frequency Applications:
    • The physical size and lead length of through-hole components can introduce parasitic inductance and capacitance, making them less suitable for high-frequency applications. Surface-mount components are often preferred in high-frequency circuits due to their smaller size and lower parasitics.
  4. Less Flexibility in Design:
    • Through-hole technology can limit design flexibility, particularly in applications requiring high component density or complex multi-layer PCBs. SMT allows for more compact and flexible designs, making it more suitable for modern, miniaturized electronic devices.

Despite these disadvantages, through-hole technology remains valuable in specific applications where mechanical strength, ease of repair, and reliable connections are more critical than the benefits offered by surface-mount technology.

Conclusion

Through-Hole Technology has been a foundational element in the electronics industry, offering unmatched mechanical strength and reliability. Despite the rise of surface-mount technology, through-hole components remain vital in applications where durability and ease of maintenance are paramount. As technology advances, through-hole technology will continue to coexist with newer methods, evolving to meet the needs of specialized and high-reliability environments.

Summary

Through-Hole Technology, characterized by components with leads inserted through holes in PCBs and soldered for secure connections, has a rich history and remains crucial in various industries. Its advantages include mechanical strength, ease of repair, and excellent thermal performance, while disadvantages like larger PCB size and higher manufacturing costs are acknowledged. Today, through-hole technology is still essential in automotive, aerospace, and industrial applications, with a future that embraces both traditional strengths and modern innovations.
